Originally written by Thomas Schreck, this panel plugin shows information about the CPU governor and frequencies supported and used by your system. At the moment, changing any of these settings is not supported by this plugin but might be implemented in future releases.
From the configuration dialog, which is available by right-clicking on the panel widget, select the CPU which you want to monitor in the panel. Instead of showing values for a single CPU, you can alternatively choose minimum, average or maximum, which might make more sense on a multi-core system. If your system is using the Intel pstate driver, the current maximum will be chosen by default, as this is what other monitoring applications like i7z show as the current real performance.
The remaining options on the configuration dialog let you customize the panel widget layout and what data is shown on the panel.
The overview window can be accessed by left-clicking on the panel plugin widget, or from the context menu, similar to the configuration dialog. It shows detailed information for every CPU (core).
Help! I cannot change CPU frequency nor governor in the CPU information dialog
This is not a bug, though it might look like one because of the widgets used that pretentiously suggest the user could change something. Changing CPU frequency or the governor is not implemented and probably will never be, as it is supposed to be handled by the kernel or power manager. The only function this plugin nowadays performs is showing CPU frequency information. The CPU info dialog is a remnant of the past when it was still possible to change these settings (or at least when it was planned to implement this). It will be redesigned to use proper widgets in a future version. More information about this can be read in bug #3428.
|Plugin in panel|

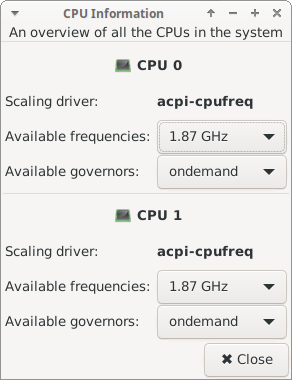

|The overview dialog|

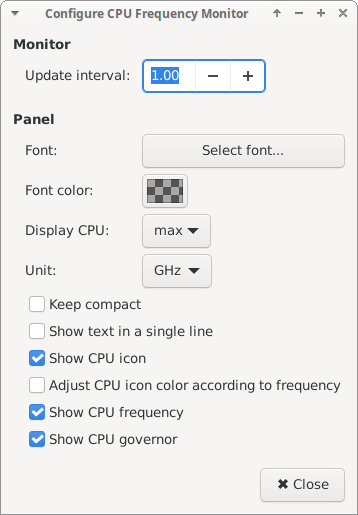

|The preference dialog|
- xfce4-cpufreq-plugin 1.2.7 released (2022/02/02 00:55)
xfce4-cpufreq-plugin 1.2.7 is now available for download from https://archive.xfce.org/src/panel-plugins/xfce4-cpufreq-plugin/1.2/xfce4-cpufreq-plugin-1.2.7.tar.bz2 https://archive.xfce.org/src/panel-plugins/xfce4-cpufreq-plugin/1.2/xfce4-cpufreq-plugin-1.2.7.tar.bz2?sha1 https://archive.xfce.org/src/panel-plugins/xfce4-cpufreq-plugin/1.2/xfce4-cpufreq-plugin-1.2.7.tar.bz2?sha256 What is xfce4-cpufreq-plugin? ============================= xfce4-cpufreq-plugin shows the current CPU frequency and governor in the panel, and the frequencies and governors and more information for all CPUs in a separate overview. Note that at the moment, it does not permit to change any of these CPU settings. Website: https://docs.xfce.org/panel-plugins/xfce4-cpufreq-plugin Release notes for 1.2.7 ======================= - Use locale-independent floats in configuration files - Fix translations not showing in the GUI - Translation Updates: Indonesian, Slovenian, Turkish
